CK3

6U CPCI PowerPC Single Board Computer

CK3

This product reached the end of its lifecycle (end-of-life) on January 27, 2006

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview

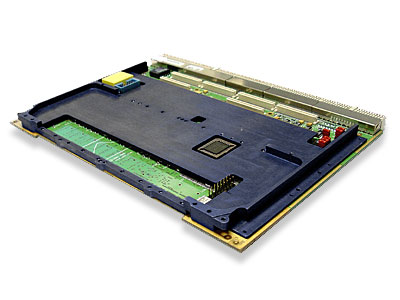

6U CPCI, conduction cooled single board computer featuring the IBM PowerPC 750 processor running at speeds up to 500MHz, the CK3 uses 128 to 512MB of SDRAM, 32MB of flash memory and 512kB of boot flash. The CK3 also features two PMC slots, 10/100 Ethernet, two serial ports, a parallel port, an IDE port, real-time clock and a watchdog timer.



  • 10BaseT/100BaseT Ethernet
  • Two RS-232 serial ports
  • PowerPC 750 up to 500MHz
  • 128 MB to 512 MB SDRAM

Specifications

Form Factor
cPCI 6U
Processor
IBM 750 @ 500 MHz
# Expansion Slots
2
Maximum Memory
Up to 512 MB SDRAM
Serial I/O
2
Transition Modules
CK3-TM
Bus Interface Chip
IBM CPC710
Ethernet
10/100BaseT
System/ Peripheral
Both
Ruggedization
Conduction Cooled
