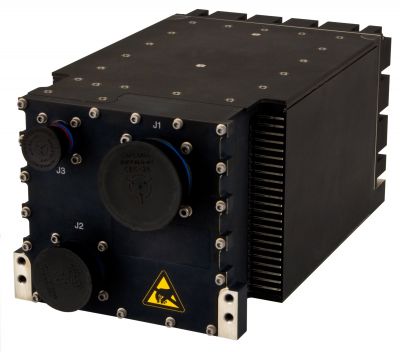

AVC-VPX-3000 DPB Advanced Vehicle Computer

Abaco Systems AVC-VPX-3000 DPB Application Ready Vehicle Computer Data Processing System is a COTS packaged pre-validated computer system that provides a rugged and highly flexible computing platform suited for mission applications requiring rock-solid reliability such as UAVs, booster and ground vehicles, and manned aircraft.

Abaco Systems’ COTS-based AVC-VPX-3000 DPB Application Ready computer system can be deployed in the field as soon as your application is ready, or use the AVC-VPX-3000 DPB as a starting point for multiple application-specific configurations. The arduous task of integrating off the shelf boards has already been done for you -- shortening your time to project completion. You have one point of contact for all issues and a single part number -- not a collection of parts.

• COTS AVC rugged conduction cooled, cold plate chassis
  • 3x 3U VPX slots
  • MIL-C-38999 connectors
  • Hermetically sealed/wash-down, EMI
• PowerPC-based single board computer
• VxWorks Real-time operating system
• BIT/EBIT support
• Urethane conformal coating

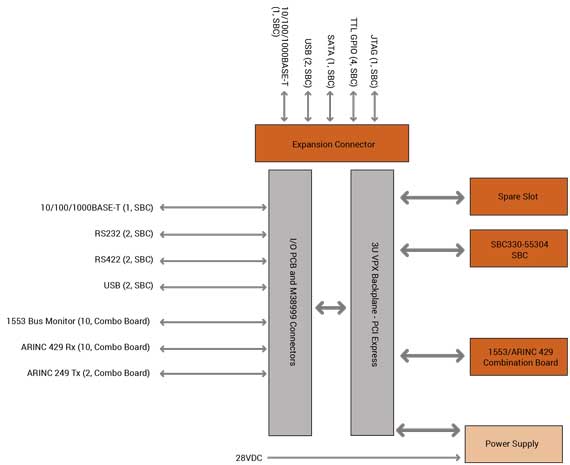

• I/O capabilities
  • Ethernet
  • Serial
  • MIL-STD-1553
  • ARINC 429
  • JTAG
• Qualified on:
  • High Altitude UAVs
  • Rotary Wing manned and unmanned vehicles
  • Ground vehicles
  • Launch vehicles
