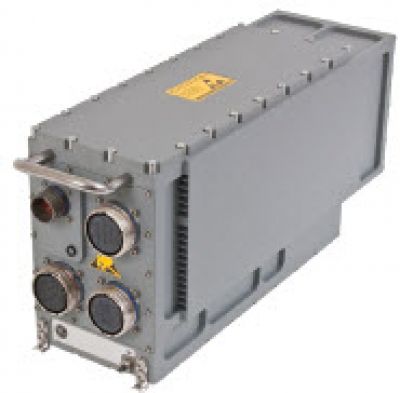

AVC-CPCI-6028 DPF Advanced Vehicle Computer

6U CompactPCI application-ready vehicle computer
AVC-CPCI-6028 DPF System

Overview

Abaco Systems AVC-CPCI-6028 DPF Application Ready Vehicle Computer Control System is a COTS packaged pre-validated computer system that provides a rugged and highly flexible computing platform suited for data processing applications requiring rock-solid reliability such as UAVs, ground vehicles, and manned aircraft.

Abaco Systems’ COTS-based AVC-CPCI-6028 DPF Application Ready computer system can be deployed in the field as soon as your application is ready, or use the AVC-CPCI-6028 DPF as a starting point for multiple application-specific configurations. The arduous task of integrating off the shelf boards has already been done for you -- shortening your time to project completion. You have one point of contact for all issues and a single part number -- not a collection of parts.

  • COTS AVC rugged forced air cooled chassis
    • 5x 6U CompactPCI slots
    • MIL-C-38999 connectors
  • Intel-based single board computer
  • Linux Real-time operating system
  • BIT/EBIT support
  • Standard conformal coating
  • I/O capabilities
    • Ethernet
    • Serial
    • VGA
    • Audio
  • Qualified on:
    • Ground vehicles
    • Airborne vehicles

Specifications

Form Factor
cPCI 6U
Operating System (OS) Support
Linux, Solaris
Processor
Intel Core Duo L2400 @ 1.66 GHz
Slots
5
Type
DPF

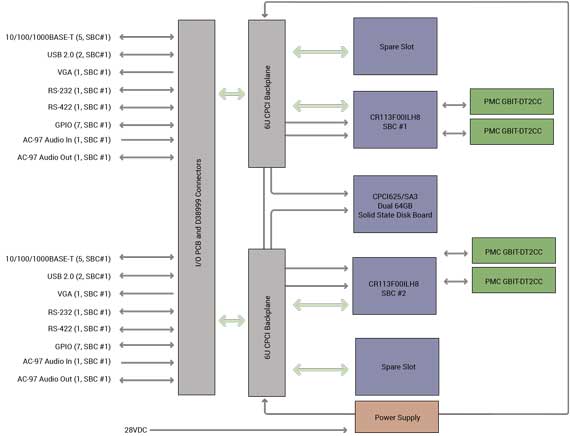

Block Diagram
