Overview

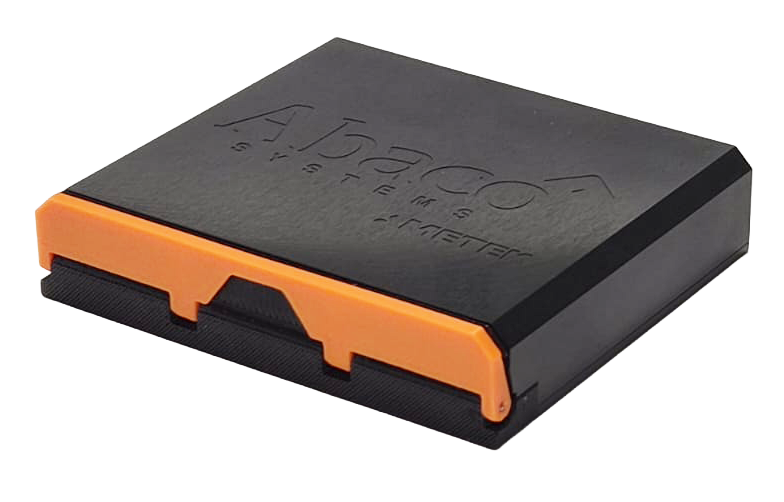

The VNX382 is a compact, high-performance single board computer aligned with the VITA 90 / VNX+ standard. Built around the NXP i.MX95 system-on-chip, it delivers exceptional processing capabilities within a low size, weight, and power (SWaP) envelope.
Intelligent Performance
- 6x Arm Cortex-A55 cores + Cortex-M7 safety core
- Real-time control with lockstep safety architectur
Built for Harsh Environments
- Rugged VITA 90 / VNX+ form factor
- Conduction-cooled, system-ready
- Mezzanine (SOM) format available
Secure by Design
- EdgeLock® Secure Enclave with post-quantum crypto
- Inline encryption from CPU to memory and peripherals
Mission-Ready I/O
- Triple Ethernet with TSN, CANbus, USB 3.0, PCIe, MIPI CSI-2
- Precision timing with IEEE 1588v2 and 802.1A
AI & Vision Capable
- Integrated eIQ NPU, Mali GPU, and image signal processor
- Ideal for autonomous and vision-based applications
Lifecycle Confidence
- Full traceability, counterfeit protection, and long-term support
- Custom configuration and coating options available
Power-Efficient Edge Computing
- Dynamic power scaling for optimal mission efficiency
- Backplane or mezzanine-style connectors for minimum SWaP

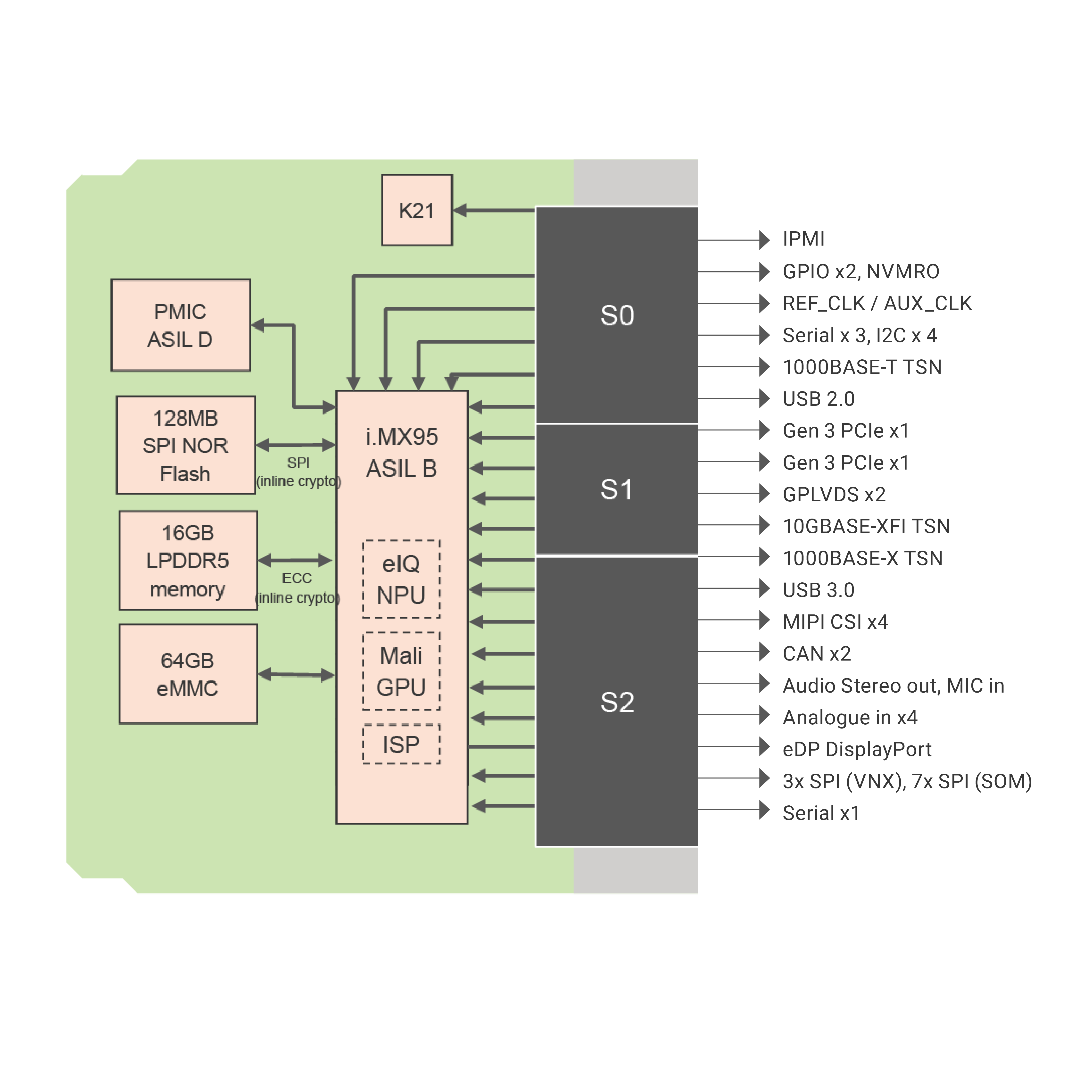

Block Diagram
