SBC3801

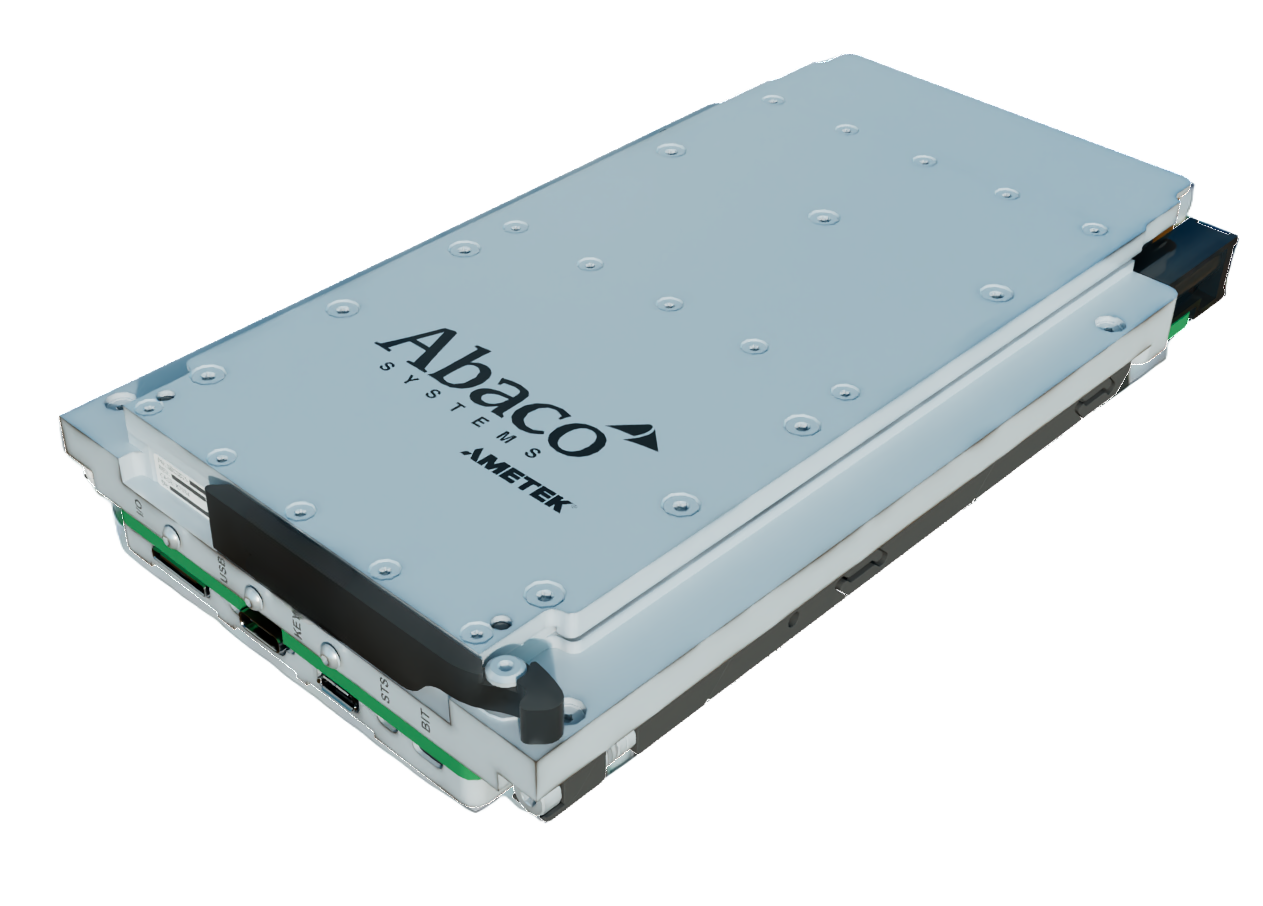

The SBC3801 is a next-generation SOSA aligned 3U VPX™ Secure Single Board Computer (SBC) designed to deliver uncompromising security and performance for mission-critical applications. This SBC3801 integrates SecurShield™ based on technology from General Dynamics Mission Systems, enabling a programmable hardware root of trust for advanced cybersecurity protection in a rugged design for deployment in harsh environments.

SecurShield combines a NSA certified technology with AMD Zynq™ SoC (ZU19EG), and Arm cores providing a robust foundation for secure computing in defense and industrial environments where data confidentiality, system integrity, and operational resilience are non-negotiable. This architecture ensures that sensitive data and cryptographic operations remain protected against evolving threats, while maintaining compliance with the latest security standards.

Applications include:

• Software Defined Radios (SDR): Secure, high-speed signal processing for tactical communications
• Guided Munitions: Embedded security for precision strike systems
• Data in Transit (DIT) & Data at Rest (DAR): Encryption and secure storage for sensitive mission data
• Multi-Function Crypto Applications: Consolidated cryptographic operations on a single platform
• Smart Munitions Security: Hardware root of trust for next-generation weapons systems
• Sensors / Forward Deployed Tactical Systems: Secure edge processing for ISR and autonomous platforms
• Semiconductor Manufacturing: Protecting IP and operational data in industrial environments

The new SBC3801 is designed to the latest open standards, featuring a SOSA aligned 14.2.16 I/O-intensive slot profile for maximum interoperability and modularity. Additional security capabilities can be implemented on the SBC, making it a flexible platform for forward deployed secure processing applications.
