VME-REPEATL-485

VMEBus Repeaters
VME-REPEATL-485

This product entered a Restricted Production Phase (RPP) on November 18, 2011

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

We recommend the following alternative solutions:

Overview

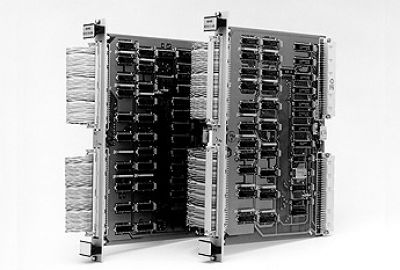

VME-REPEATL-485 - Long-Line Repeater Link - Repeater Link is a two-board set which allows VMEbus slave I/O boards residing in one VMEbus chassis to be controlled by a VMEbus master residing in another chassis. The VMEbus chassis in which VMEbus masters reside is referred to as a master chassis, while the VMEbus slave boards reside in a slave chassis.


  • Supports VMEbus slaves on a "slave-only" VMEbus
  • DIN-type I/O connectors
  • Double Eurocard form factor
  • Link includes one model REPEAT M-485, one model REPEAT S-485, and a wide variety of cable length options
  • Supports 8- and 16-bit data transfers
  • Supports 16- and 24-bit addressing
  • Allows expansion to 19 x 19 slots using 20-slot backplanes in a star configuration
  • Supports all seven interrupt levels
  • Supports up to 2,000-foot cables
  • Software transparent link
  • Differential line drivers and receivers provide ±7 V noise rejection

Specifications

Addressing:
24
Data Transfer Bits
8, 16
Distance
5 to 2,000 ft
