Overview

High-performance, easy-to-use method of linking two or more VMEbus systems together via fiber-optic cable. Software transparent allows direct communication from primary chassis to secondary chassis with no software overhead (unidirectional link control with bidirectional data transfers).

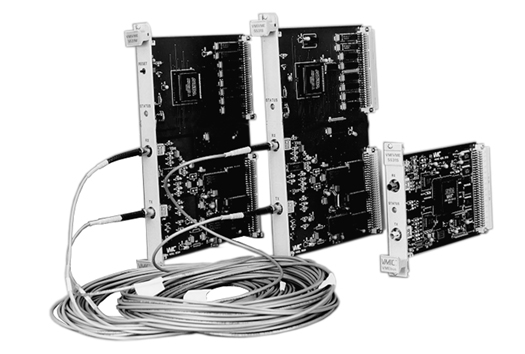

  • The VME-to-VME link consists of two boards and two fiber-optic cables (master board: 6U, slave board: 6U or 3U)
  • Form, fit, and function replacement for VMIVME-5530
  • Maximum 6,560 ft (2,000 m) fiber-optic cables
  • No EMI generated by cables
  • High-voltage isolation
  • High-noise immunity
  • Small cables
  • Advantages over standard repeaters
  • Total electrical isolation between VMEbus systems
  • Supports 16-, 24-, and 32-bit addressing (6U slave)
  • Supports 8-, 16-bit data, 16-, 24-bit address (3U slave)
  • Plug-and-play operation
  • Supports 8-, 16-, and 32-bit data transfers (6U slave)





Specifications

Addressing:
32
Data Transfer Bits
8, 16, 32
Distance
5 ft to 6,560 ft
Form Factor
VME
Other
VMEbus Fiber-Optic Repeater Link
