VPX361 Rackmount Development System

Dedicated to high-speed signal processing and computing

Overview

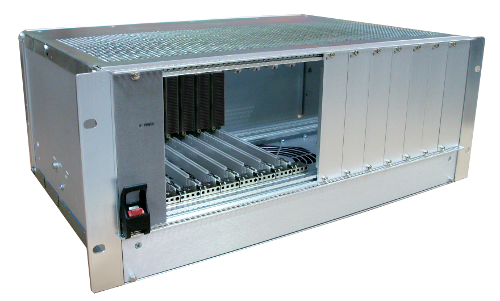

The VPX361 is a 6-slot, 3U VPX system dedicated to high-speed signal processing and computing applications. The VPX361 system slot is populated with a single-board computer (SBC) comprising a dual-core i7 Intel processor, up to 8GB of DDR3 SDRAM, two Ethernet ports, and a DVI display port. All remaining five expansion slots communicate with the host via PCIe and can be used for high-end, 3U, OpenVPX-compliant cards.

With a backplane optimized for fast inter-slot communication in excess of 6 GB/s between any two adjacent slots in the system, the VPX361 offers a combination of flexibility and high performance in a standard, 19-inch equipment rack enclosure. OpenVPX cards from third-party vendors or 3U VPX products from 4DSP can be used in the VPX361.

Specifically, the VP780 with a Virtex-7 FPGA and an FMC site offers I/O versatility and processing power that makes it suitable for any application.

Desktop and ruggedized VPX systems are also available. See the VPX360 and VPX362 product pages for more details.

Board Support Package

Our Board Support Package helps customers get their hardware implementation underway as quickly as possible by providing reference designs, the Stellar IP FPGA development tool, and the 4FM GUI user interface for controlling and monitoring the hardware, as well as other supporting elements.

Specifications

Cooling
Air
Form Factor
VPX 3U
I/O Types
Multi-channel A/D and D/A using FMCs
Operating System (OS) Support
Linux, VxWorks, Windows
Processor
Intel Core i7
Ruggedization
Commercial
Slots
6
User Programmable FPGA
Kintex or Virtex Ultrascale
