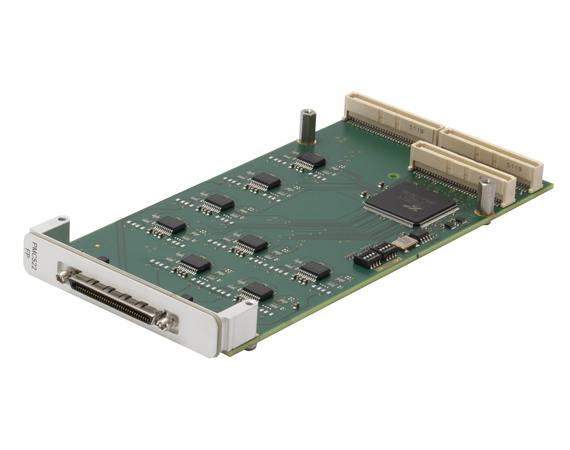

PMC522/FP Serial Controller

Eight Port Serial I/O for VME and CompactPCI

Overview

The PMC522/FP provides a uniquely effective solution for integrating serial I/O requirements into a VMEbus or CompactPCI system. Implemented on a single PMC card, the PMC522/FP is fully compatible with the current generation of VMEbus and CPCI single board computers, as well as any special purpose processor that includes a PMC connector.




  • Eight general purpose RS232/RS-422 inputs
  • Read/write burst operation
  • Data transfer in byte, word, and double-word
  • Eight ports routed to the front utilizing a 68-pin high-density connector or eight ports routed to the rear via P14
  • PMC/PCI form factor

Specifications

Conformal Coating
Yes
Form Factor
PMC/PCI
Front I/O
Yes
Interface
RS232/422
Platform
PMC, VME, cPCI
Ports
8
Rear I/O
Yes

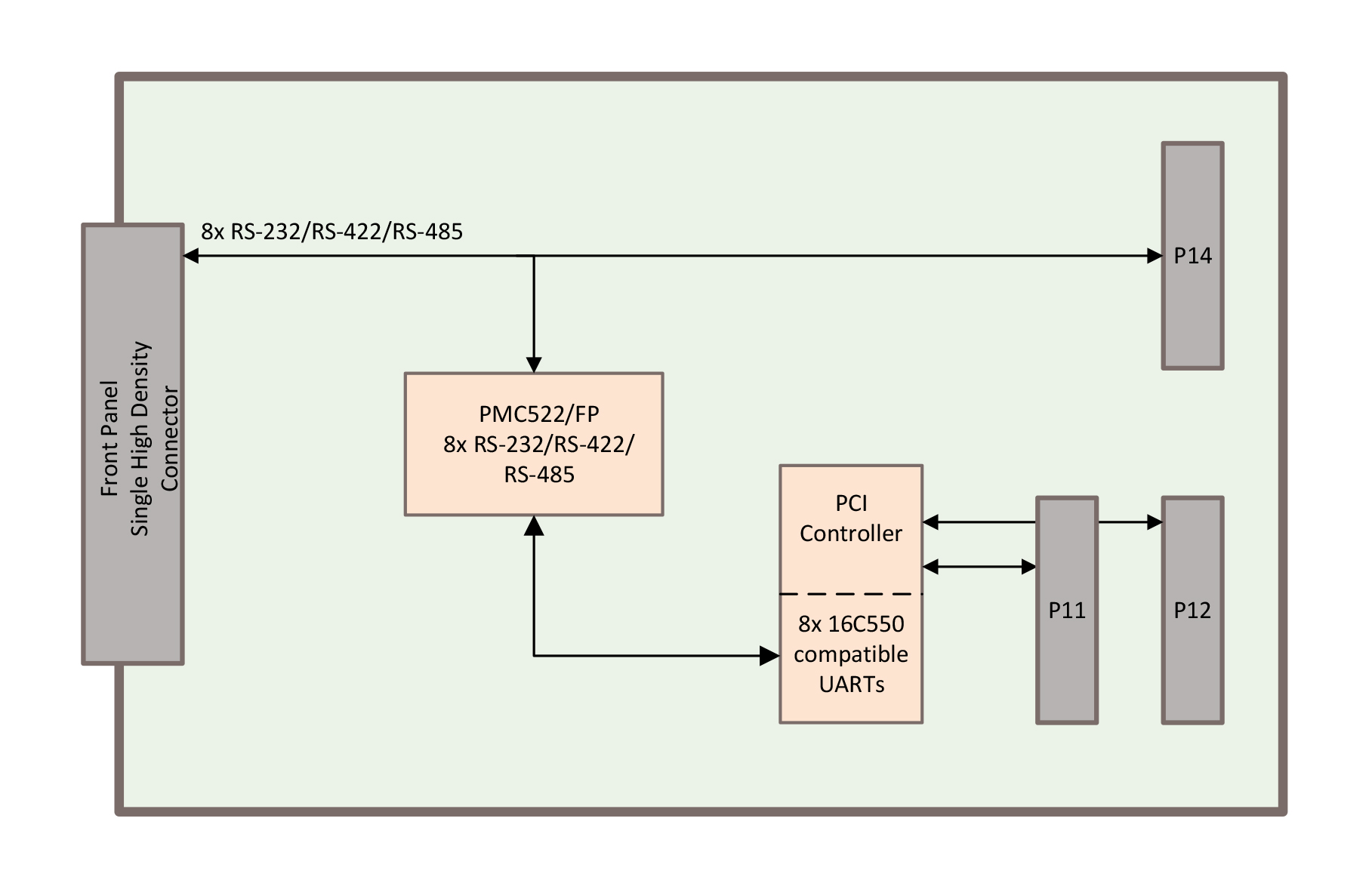

Block Diagram
