NVP2000

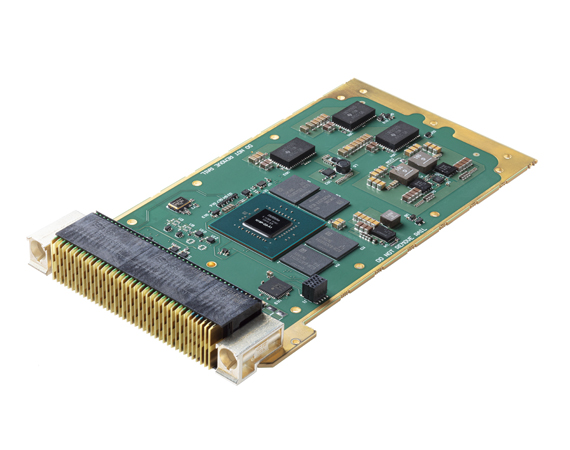

NVP2000 NVIDIA Quadro P2000 XMC Graphics and GPGPU Board

Overview


Leading Technology

The Abaco NVP2000 is a chip-down 3U XMC graphics output and GPGPU card based on the NVIDIA® Pascal ™ (GP107) Quadro® P2000 GPU. The NVP2000 leverages the high performance of the GPU with its 768 CUDA cores and 4GBytes of GDDR5 memory to deliver 2.3 TeraFLOPs of peak performance with CUDA™ and OpenCL™ support.

High Performance Applications
The NVP2000 is designed for the most demanding applications such as SIGINT, situational awareness, radar and video or graphics processing applications, while its high degree of parallelism also makes it an optimum fit for GPGPU applications including machine learning and autonomy.

It is designed for graphics generation/output, supporting three DisplayPort™ 1.4 ports capable of 4K resolution @ 60Hz. These can be converted to DVI or VGA with adaptors. The board consumes up to 32W, dependent on the application and power configuration and also supports H.265 (HEVC)/H.264 (MPEG-4 AVC) encode/decode.

AXIS Software Toolkit

AXIS ImageFlex is an image processing and visualization toolkit enabling the rapid development of high performance image processing, visualization and autonomy applications aimed at size, weight and power (SWaP) sensitive platforms. It is focused on high performance GPU processing and graphics with interoperability with other programming paradigms such as OpenGL, OpenCL, CUDA and OpenCV.





Block Diagram

Specifications

Form Factor
XMC
I/O
3x DisplayPort 1.4 outputs
Cooling
Air, Conduction
Chip Set
NVIDIA Pascal GPU - Quadro P2000
Conformal Coating
No
Extended Temperature Range
Yes
