XVB603 6U VME SBC

6U VME single board computer with Intel Xeon E3-1505M v6 processor

Overview

Established, proven VME roadmaps

The XVB603 provides straightforward, cost-effective and low risk upgrades for users of previous XVB products, bringing enhanced processor performance, enhanced storage and improved protection against obsolescence. They will also be attractive for new program starts looking to benefit from Abaco’s established and proven VME roadmaps.

Avoid obsolescence issues

The XVB603 offers the same reliability and stability that typifies VME-based products. Long term availability is assured as a result of utilizing CPUs from Intel’s long term-supported IoT (Internet of Things) roadmap, and Abaco’s new Vivo FPGA-based VME interface which abstracts these products from potential obsolescence issues.

Benign or rugged environments

The XVB603 is specifically targeted at air-cooled, front I/O applications in relatively benign environments typically found in industrial or sheltered defense settings. Extended longevity is further enhanced by Abaco’s industry-leading Product Lifecycle Management program which plays a key role in Abaco’s strategy of minimizing customers’ long term cost of ownership.



Our solutions come in all shapes and sizes

Whatever the systems architecture, whatever the form factor, whatever the interface – the chances are, Abaco has the optimum solution for your requirement.

XMC

Abaco’s range of high performance XMCs supports the demanding networking, I/O and processing needs of advanced applications.

XMC

PMC

Whether it’s 1553 connectivity or advanced graphics, Abaco’s extensive range of PMCs provides a host of flexible solutions.

PMC

NETernity™ GBX25

A Layer 3 Managed 6U VME Ethernet Switch. Delivering new levels of simplicity in configuring 6U VME network support and handling almost any network configuration.

GBX25

Specifications

# Expansion Slots:
1
Chip Set:
CM238
Cooling
Air
Ethernet
Gigabit Ethernet
Form Factor
VME 6U
Front I/O
Yes
I/O
2eSST VME, DisplayPort, DVI, Gigabit Ethernet, GPIO, SATA, Serial, USB, VGA
Maximum Memory
Up to 16 GB DDR4 SDRAM soldered with ECC
Mezzanine
1x PMC/XMC
Operating System (OS) Support
BIOS, Linux, VxWorks, Windows 10
Other
Up to 256 GB M.2 SSD
Processor
Intel Xeon E3-1505M, E3-1505L v6
Rear I/O
Yes
Ruggedization
Level 1-2 Air Cooled
Serial I/O
3
Software
BIT
Temp Range
Commercial XT
Transition Modules
VTM29

Product Lifecycle Management

All our products are designed to be supported over the multi-year – multi-decade, even – lifetime of the typical program. Whether for technology insertion or obsolescence management, we’re with you for the long haul.

More Details

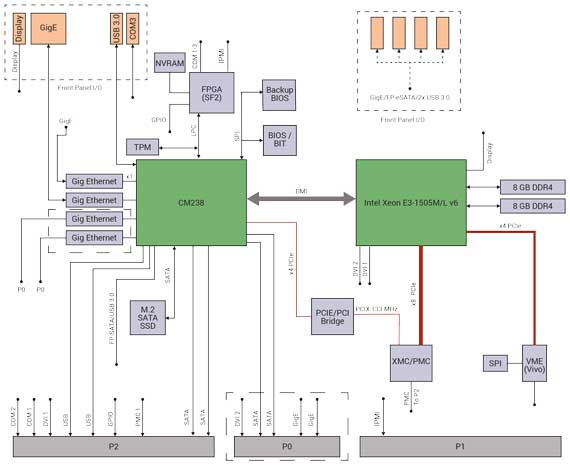

Block Diagram
