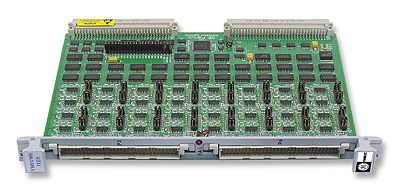

VME-1129 Digital Input Board

128-bit high voltage
VME-1129

Overview

VME-1129 128-bit high voltage digital input board with Built-in-Test and input filter. This product complies with the VMEbus specification (ANSI/IEEE STD 1014-1987, IEC 821 and 297), with the following mnemonics: A24:A16: D32/D16/D08 (EO): Slave:39/3D: 29/2D Form Factor: 6U


  • MTBF: 136,969 hours (217F)
  • Front panel with fail LED
  • Double Eurocard form factor (6U)
  • 128 bits of high-voltage digital inputs
  • 3 ms input noise suppression filter
  • Each group of eight inputs are jumper-selectable to monitor voltage source or current sinking signals
  • On-board Built-in-Test logic for fault detection and isolation
  • User-selectable input voltage thresholds (0.67 to 31 V)
  • A24:A16: D32/D16/D08 (EO): slave: 39/3D:29/2D
  • VMEbus compatible (ANSI/IEEE STD 1014-1987 IEC 821 and 297)

Specifications

Channels
128 Input
Data Transfer Bits
8, 16, 32
Form Factor
VME
I/O Voltage Range
1.25 to 66 VDC
Interface
Buffered inputs with debounce - Front I/O
