RCNIC-A2PAU4 Interface

Dual port ARINC 664 4-lane PCI Express interface
RCNIC-A2PAU4 Interface

This product entered a Restricted Production Phase (RPP) on June 14, 2021

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview

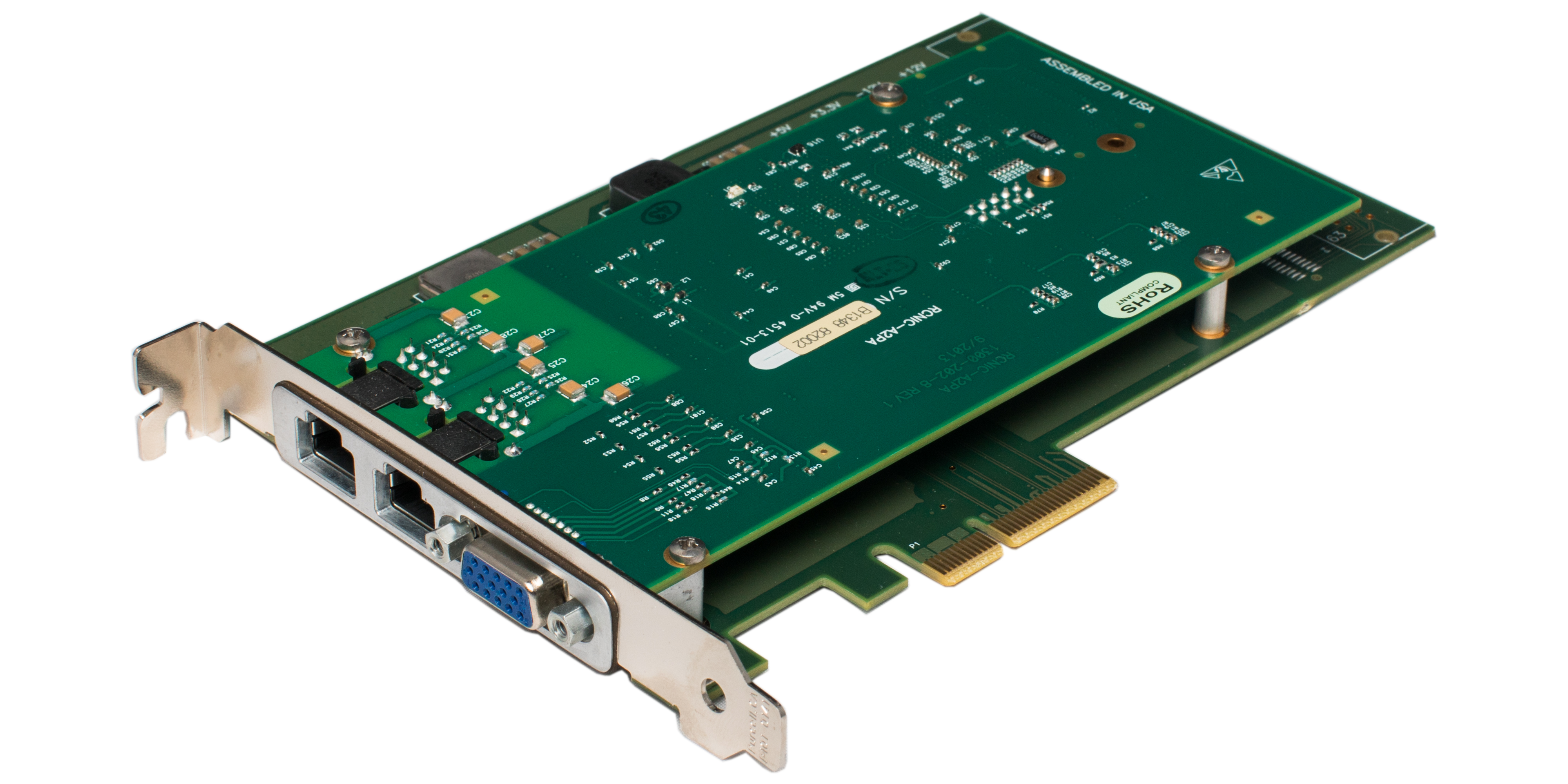

Abaco Systems' RCNIC-A2PAU4 is a high performance 4-lane PCI Express interface for monitoring, generating or analyzing full-bandwidth AFDX/ARINC 664 protocol traffic. Our exclusive pipeline architecture maximizes packet throughput using parallel controllers and efficient DMA transfers, thereby avoiding the bottlenecks of CPU-based interface solutions.

Configurable as either one dual-redundant AFDX/ARINC 664 interface or two independent ports, users have complete access to all frame and header data. Each incoming packet is tagged with a 20 nsec resolution, 64-bit time-tag. Real time traffic generation is highly accurate. An IRIG-B receiver/generator is included for synchronization to external IRIG-B time sources and for synchronizing multiple RCNIC-A boards. In addition, I/O triggers, error detection/injection, BIT, and link/protocol level statistics are provided.

The RCNIC-A2PAU4 comes with all the software development tools needed for user application development at no extra charge. The Cpcap packet capture library provides a complete set of functions for transmitting and receiving Ethernet frames.





  • AFDX/ARINC 664 dual port interface ( two independent 10/100 MHz full duplex ports)
  • 4-lane PCI Express
  • Includes AFDX and low-level Software Development Kit (SDK) at no additional charge.
  • Advanced reception features
        - 20 nsec time-tags
        - IRIG-B synchronization
        - DMA transfer to host
        - Full throughput capability
        - Link level error detection
  • Advanced transmission scheduling
        - Highly accurate
        - Flexible scheduling modes
        - DMA transfer from host
        - Full throughput capability
        - Link level error injection
  • Advanced software support
        - Flexible packet capture API
        - AFDX/ARINC 664 API
        - XML configuration format
        - Integrated log file format
        - Berkeley packet filter engine
  • Four bi-directional avionics level discretes
  • Input and output triggers per channel
  • Built-in test features
  • Supportable throughout program lifetime with Product Lifecycle Management (PLM) program








Specifications

AFDX Stack
AFDX / ARINC 664 protocol stack
Analyzer
BusTools
Application
Lab, Simulation, Test
Channels
2
Form Factor
PCI Express
Options/ Notes
IRIG Support. BusTools/AFDX analyzer available.
Ports
2
Processor
FPGA
Ruggedization
Conformal Coating
Temp Range
Commercial
