RCEI-715A

ARINC 429 interface for PCMCIA
RCEI-715A

This product entered a Restricted Production Phase (RPP) on July 17, 2023

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview

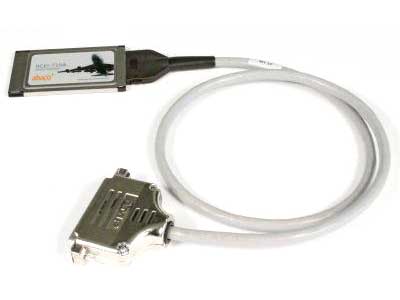

The RCEI-715A is an intelligent, high-density, Type II PC Card (PCMCIA) interface that provides up to 12 fully independent ARINC 429/575 channels, along with up to 4 bi-directional avionics-level I/O discretes. The Abaco Systems RCEI-715A PC Card's  features include programmable data rates and parity, error detection, multiple buffering modes, time-tagging and automatic transmit slew rate adjustment.  Abaco Systems' BusTools/ARINC analyzer, our flexible, Windows-based GUI Bus Analyzer with LabVIEW support is available as an option.

This programmable card is RoHS-compliant and is a direct drop-in replacement for the CEI-715 card which it replaces. The RCEI-715A comes with all of the cables necessary for operation. Cables designed for the CEI-715 card will not work with the RCEI-715A card.





  • 4 bi-directional avionics-level discretes
  • Easy-to-use BusTools/ARINC Windows-based GUI Bus analyzer available
  • Configuration available with ARINC 429, avionics-level discretes
  • Up to 8 Rx, 4 Tx ARINC 429 channels
  • Available with ARINC 429, 573, 717, CSDB and ARINC 561 6-wire on same card
  • Support for LabVIEW
  • Support for Microsoft® Windows® 7, 8, 8.1, 10, Server 2012 R1/R2, Vista, and XP 32-bit operating systems







Specifications

# ARINC Channels:
2 to 8
Analyzer
BusTools
Application
Notebook Portable
Form Factor
PCMCIA
Protocol
429, 573, 575, 717, 568/582 6-wire, 582 2-wire, CSDB, 561/568/572 6-wire
Temp Range
Commercial
