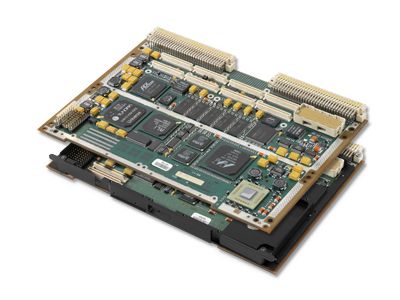

PowerXtreme PPC7D

6U VME Power Architecture 7448
DOWNLOAD DATASHEET
REQUEST A QUOTE
PowerXtreme PPC7D
Overview
Specifications
Downloads
Request A Quote
Contact An Expert
Get Support

This product entered a Restricted Production Phase (RPP) on June 20, 2014

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

We recommend the following alternative solutions:

Overview

PPC7D 6U VME SBC offers the 7448 Power Architecture processor, fully supported by the Marvell Discovery III Integrated System Controller providing high performance coputing data bandwidth to Double Data Rate memory and a bridge to two PCI-X buses. Two PMC sites and a new AFIX (Additional Flexible Interface Xtension) site provide access to further incremental system expansion. PPC7D single board computer software support includes our comprehensive Deployed Test software and PPCBoot firmware, plus Board Support Packages (BSPs) and Enhanced Support Packages (ESPs) for VxWorks from WindRiver, LynxOS from LynuxWorks, INTEGRITY from Green Hills Systems and Open Source Linux.



  • Five ruggedization levels, air- and conduction-cooled
  • 6U VME SBC
  • 2x Gigabit Ethernet
  • Freescale Power Architecture 7448 @ 1.4 GHz
  • 2x PCI-X PMC slots
  • Download our Ruggedization Levels guide (also available from the Downloads tab)


Specifications

# Expansion Slots:
2
Bus Interface Chip
Tundra Universe IID
Ethernet
Gigabit Ethernet
Form Factor
VME 6U
Maximum Memory
512 MB SDRAM with ECC
Other
AFIX site; USB; AXISView, AXISFlow, AXISLib Support
Processor
7448 @ 1.4 GHz
Ruggedization
Level 1-5 Air, Conduction Cooled, Level 1-5 Air, Conduction Cooled
Serial I/O
6
Transition Modules
P25X606G
