This product entered a Restricted Production Phase (RPP) on December 23, 2005
Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.
Overview

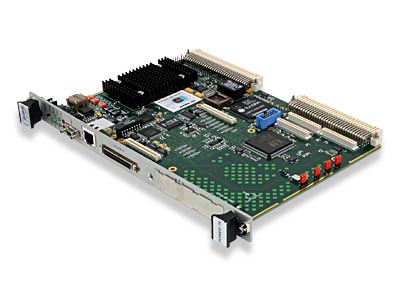

Power7E is a 6U VME64 single board computer with PowerPC processor up to 500 MHz, and support for PPC-7400. The Power7E has 64 MB to 1 GB of SDRAM, 16 MB of flash memory and 512 KB of socketed Flash. Features 10BaseT/100baseTX Ethernet, two RS-232C ports, PMC interface, 32 KB NVRAM and a JTAG port.
- Two RS-232 serial ports
- PowerPC 750 up to 500 MHz; 83 MHz system bus
- 64 MB to 1 GB SDRAM with ECC at 83 MHZ
- 10BaseT/100BaseTX Ethernet with RJ-45 connector
Specifications
# Expansion Slots:
1
Bus Interface Chip
Tundra Universe II
Ethernet
10/100BaseT
Form Factor
VME 6U
Maximum Memory
Up to 256 MB SDRAM with ECC
Processor
IBM 750 @ 500 MHz
Ruggedization
Level 1 Std. Air Cooled
Serial I/O
2
Transition Modules
P7E-TM
