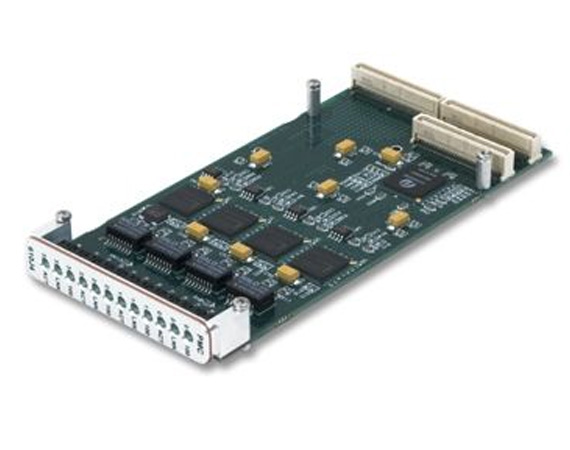

PMC610J4RC Network Interface Card

Modular, expandable Ethernet connectivity

The PMC610J4RC delivers four auto-negotiating ports of 10/100Mbit full-duplex Ethernet in the modular PMC form factor, allowing system integrators to expand the Ethernet connectivity of almost any embedded system. This version of the product supports rear I/O. For a front I/O version please see PMC610RC

High performance with low overhead.

Each of the Ethernet/PCI interfaces of the PMC610J4RC includes a powerful DMA engine with very deep FIFO buffers ensuring continuous, full bandwidth operation with minimum PCI overhead. A PCI to PCI bridge couples the Ethernet interfaces to the host PCI bus, assuring high performance with minimum PCI loading.

A unique feature allows two PMC610J4RC NICs to be directly cabled with a simple "cross-over". This configuration creates a full duplex 800Mbit dedicated data path, delivering high bandwidth at very low cost. More complex, dedicated interconnects can be created using a hub or switch. Both point-to-point and switched hubs, in full duplex mode, remove many determinism concerns raised with traditional Ethernet solutions. This makes the PMC610J4RC an excellent candidate for high performance interconnects that require real time determinism.

Choice & Flexibility

Software drivers are available for most popular operating systems such as VxWorks, Linux, LynxOS,and Windows NT. These drivers have been carefully designed and implemented to integrate into the native LAN protocol stack of host operating systems allowing full user control over the Ethernet interfaces.

Wide operating temperature range versions of the PMC610J4RC are also available. There is also a 2-port version of the product.

Overview:

• Acrylic or polyurethane conformal coating available
• Wide operating temperature range versions available
• Dual port version available
• PMC610J4RC is the RoHS compliant version of the PMC610J4
• Full duplex operation in both 10 and 100 Mbit modes
• TCP/UDP checksum off loading
• Fully supports IP Security (IpSec)
• Rear I/O with J4 connectors
• PCI 66MHz capable
• Four 10/100BaseTX Ethernet ports
• RoHS compliant
