PMC571

PMC571 Rugged single channel digital transceiver ADC & DAC PMC module intended for Software Defined Radio (SDR) applications. Offers wide bandwidth analog-to-digital and digital-to-analog conversion capabilities with 14-bit resolution.
PMC571

This product entered a Restricted Production Phase (RPP) on November 15, 2013

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview

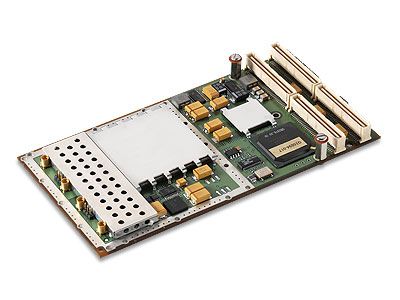

PMC571 is a high performance digital transceiver in a rugged PMC format, intended for Software Defined Radio (SDR) applications. It offers wide bandwidth analog-to-digital and digital-to-analog conversion capabilities with 14-bit resolution. A powerful 4 Million gate FPGA provides the platform for application-specific software development within a Xilinx Virtex-II environment. PMC571 brings to rugged environments the features and functionality offered by software radio technology. The 64-bit/66 MHz PCI interface ensures compatibility with the latest generation Abaco Systems' Quad PowerPC Signal Processor boards in addition to VMEbus PowerPC and CompactPCI Single Board Computers. When harnessed with the enormous processing power provided by the hardware platforms above, and application support offered through Abaco Systems Sensor Processing, in addition to Abaco Systems' mission-critical Long-Term Support, Configuration Control and Obsolescence management services, PMC571 gives system integrators a 'complete tool set to get the job done'.





  • Single channel software radio rugged transceiver PMC module
  • Sample rates up to 105 MHz (ADC), up to 200 MHz (DAC)
  • Processing bandwidth 40 MHz
  • 14-bit data conversion on ADC and DAC functions
  • Full 64-bit/66 MHz PCI interface
  • 64-bit general purpose I/O
  • Extensive application and technical support available
  • For Ruggedization Levels, please see the configuration guide under the downloads tab
  • Xilinx XC2V4000 Virtex-II user FPGA
  • Air- and conduction-cooled ruggedization levels
  • Sensor Processing Resource Center







Specifications

Channels
1 out
Form Factor
PMC
Function
Transceiver (Analog Input & Output)
Max. Sampling/Conversion Frequency
105 MHz/ch.
Resolution
14-bit
Ruggedization
Level 1-5 Air, Conduction Cooled
User Programmable FPGA
Virtex-II XC2V4000
