PEX430

PCI Express switch and PMC/XMC carrier card for VPX systems
PEX430 Carrier Card

This product entered a Restricted Production Phase (RPP) on March 31, 2020

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

We recommend the following alternative solutions:

Overview

PEX430 allows designers to build complex VPX systems with multiple single board computers and multiple I/O modules. It provides both a PCI Express switch and a mezzanine carrier.

The PCI Express capability of PEX430 allows up to four ports of 4-lane PCI Express to be connected to a non-blocking line-speed switch. The PEX430 switch supports non- transparent bridging mode to allow multiple hosts to be connected together.

The PCI Express switch also has an 8-lane PCIe port to the XMC site, or alternatively a 4-lane PCIe port to an PCI-X bridge for the PMC site.

  • Air-cooled and rugged conduction-cooled versions
  • Supports PMC or XMC modules
  • Non-transparent mode for multiple hosts
  • Four 4-lane PCI Express non-blocking switch
  • One PMC or XMC site
  • For Ruggedization Levels, please see the configuration guide under the downloads tab


Specifications

Capacity
1 PMC/XMC
Fabric Interface
PCIe
Form Factor
VPX 3U
Mezzanine
1x PMC/XMC
Ruggedization
Conduction Cooled

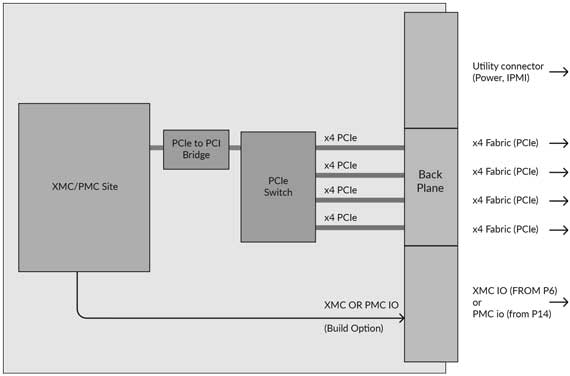

Block Diagram
