This product entered a Restricted Production Phase (RPP) on May 31, 2022

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview

10GBase-T expandability

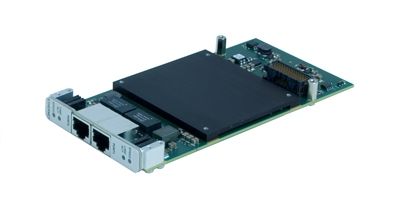

The NIC10GFT is a dual port 10GBase-T XMC module that brings 10GbE expandability to new and existing embedded systems with available XMC slots.

Advanced networking capabilities

Featuring the Intel x540 10GbE controller, the NIC10GFT supports flow control, integrated IPsec security engines, optimized queues, IPv6 offloading, advanced filtering capabilities, and Tx/Rx IP, TCP and UDP checksum offloading capability.

Flexibility. Scalability.

Designed for both new and legacy network architectures, the NIC10GFT will auto-negotiate between 100Mbps, 1Gbps and 10Gbps speeds and it connects to host platforms via a PCI Express Gen 2 interface supporting x1, x2, x4 or x8 lane widths. The NIC10GFT is a standard, single width VITA 42.0 XMC compliant board and it includes VxWorks, Windows and Linux drivers.

Specifications

Form Factor
XMC
Front Panel I/O Connectors
RJ-45
Media
Copper
PCI Controller/ Ethernet MAC
Intel X540 Dual 10GbE Controller
Port Type
10GBase-T
Ports
2

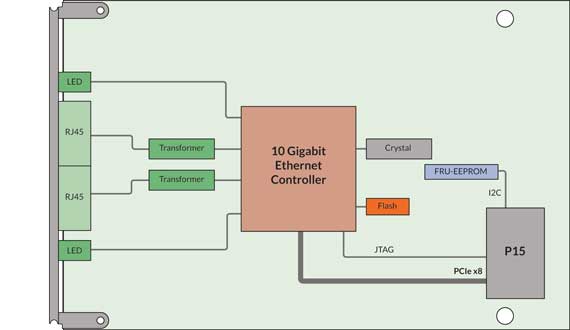

Block Diagram

nic10gft-block-diagram.jpg nic10gft-block-diagram.jpg
