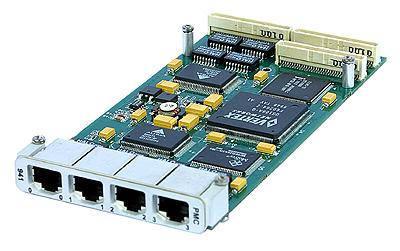

NETernity™ PMC941

NETernity PMC 8-port 10/100BaseTX Ethernet switch with onboard NIC
NETernity™ PMC941

This product entered a Restricted Production Phase (RPP) on January 12, 2010

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview

NETernity™ PMC941 is a fully integrated 8-port Ethernet switch + 1 NIC, designed to support the low-cost requirements of unmanaged switch applications and converging networks. The QoS technology allows low cost unmanaged switches to carry voice and data traffic without having to compromise the quality of its voice traffic by using the packet prioritization scheme. Packets are prioritized based upon their Layer 2 VLAN priority tag or the Layer 3 Type-Of-Service / Differentiated Services (TOS/DS) field. This priority can be defined as transmit and/or drop priority. In addition, card edge PCI systems can be accommodated using our PMC239 adapter for rapid prototype and development.





  • Flow Control capabilities including back pressure for half-duplex and 802.3x flow control for full-duplex
  • Provides both Full/Half duplex ports
  • Up to 8 port-based VLANs
  • Provides port-based prioritization of packets on 4 ports
  • Enables mixed voice-data networks
  • Auto address learning
  • Auto address aging leading edge QoS capabilities, based on 802.1p, and IP TOS/DS field
  • 1k MAC address table
  • NIC is connected to the switch at 100 Mbit full duplex
  • Eight 10/100Mbps auto-negotiating (4 port front access and four port rear)
  • Full wire speed
  • Onboard NIC at 100Mbit full duplex
  • PMC 8 port switch, Layer 2
  • 4 ports front I/O and 4 ports rear
  • Ethernet/LAN Resource Center

Specifications

Form Factor
PMC
Management Type
Unmanaged Layer-2
Port Type
10/100BaseTX
Ports
8
