ICS-7003

ICS-7003 PCI Express Dual PMC Carrier Card compatible with x8 and x16 PCI Express slots in late model workstation and server PCs, the ICS-7003 provides unmatched data transfer performance. Each PMC site supports PCI-X allowing data rates up to 1 GB/s.
ICS-7003

This product entered a Restricted Production Phase (RPP) on December 1, 2011

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview

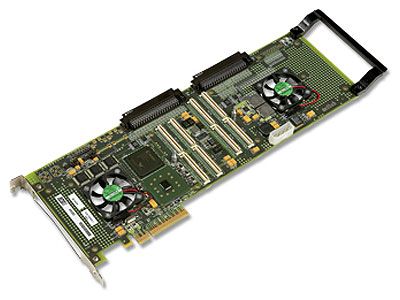

The ICS-7003 is a full length PCI Express card capable of carrying two single-width PCI Mezzanine Card (PMC) modules. It allows the User I/O (Pn4) connectors of the two sites to be interconnected, or to be connected to external equipment in a flexible fashion. The card incorporates a PCI Express to dual PCI-X bridge providing x8 (8-lane) PCI Express operation. It is capable of 64-bit, 133 MHz PCI-X operation on both local segments. The board is capable of a data transfer rate of up to 2 GBytes/second in each direction on the PCI Express segment. The ICS-7003 connects the Pn4 (User I/O) connectors of the two PMC sites independently to a 1.5 million gate FPGA. These connections support LVDS signals. Two 80-pin KEL cable connectors on the top surface of the board, provide ANSI/VITA 17 FPDP/FPDP II connections to the FPGA, in the standard version of the board. One of these is configured as an input (FPDP/RM) while the other is configured as an output (FPDP/TM). These connections may be reconfigured for LVDS signals or for the other purposes. The ICS-7003 provides a cooling fan for each PMC site and engineering test points to the FPGA.



  • Intelligent switch matrix provides user defined Pn4 connections between PMCs, or to FPDP II peripherals
  • Each PMC site supports PCI-X allowing data rates up to 1 GByte/second
  • Adapts two PMC cards to x8 PCI Express
  • Transparent installation into PCIe systems - no additional drivers required
  • Sensor Processing Resource Center

Specifications

Capacity
2 PMC
