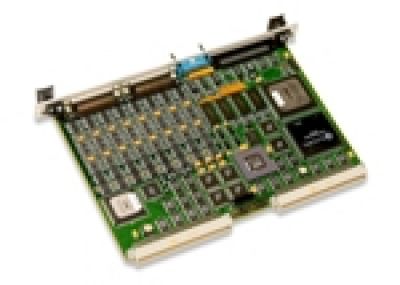

ICS-115A

32-ch, 100 kHz/ch., 16-Bit Delta-Sigma VMEbus DAC board offers a true 16-bit precision and update rates of up to 100 kHz/ch. Ideal for sonar transmit, real-time simulation and digital audio applications.
ICS-115A

This product entered a Restricted Production Phase (RPP) on January 18, 2010

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview

The ICS-115A is a 32-channel VMEbus DAC board that offers true 16-bit precision and update rates of up to 100 kHz/channel. The use of delta-sigma DACs offers a high degree of precision and digital interpolation, which moves the aliased image away from the signal band. This signigicantly relaxes post-filtering requirements. The ICS-115A provides differential outputs with high current drivers to directly drive large capacitive loads, and a 2-pole reconstruction filter for each DAC output is provided for each channel.

The ICS-115A board is ideal for sonar transmit, real-time simulation and digital audio applicatons. The ICS-115 is a slower speed version of the ICS-115A board that can operate at up to 50 kHz/channel update rate.





  • External or programmable internal clock
  • 90 dB dynamic range and -90 dB interchannel crosstalk
  • Simultaneous sampling at rates from 4Hz to 50 kHz
  • Delta-Sigma DACs which virtually eliminate complex and expensive reconstruction filtering
  • Front panel synchronization signals to allow simultaneous sampling over a large number of boards
  • 16-bit resolution with differential inputs
  • 4, 8, 16 or 32 input channels
  • 1 MSample onboard buffer
  • VME, VSB and FPDP interfaces
  • Continuous one-shot and loop modes
  • Sensor Processing Resource Center





Specifications

Channels
32
Form Factor
VME 6U
Function
Analog Output
Max. Sampling/Conversion Frequency
100 kHz/ch.
Memory
1 MB
Resolution
16-bit
