GVC2000 Rugged HPEC Display Computer

Lightning-enabled small form factor mission/graphics computer
DOWNLOAD DATASHEET
GVC2000 Mission Ready Computer

Overview

COTS - the right way

The GVC2000 is an ideal mission- or graphics computer that is mission-ready out of the box, reducing program risk and cost. Although it's highly configurable to specific requirements, it's also available on surprisingly short leadtimes.

Let's talk I/O

The GVC2000 features Abaco’s revolutionary expansion module to provide highly configurable I/O options. It is an optimum fit for symbol generation, mission computing, demanding graphics generation applications, and GPU-accelerated data processing.

Pre-qualification benefits

An immensely robust prequalification testing program ensures the GVC2000 will meet your application’s toughest requirements with little, if any, additional testing needed. Based on MIL-STD-461G, DO‑160G, MIL-STD-704F, MIL‑STD-810G specifications, the GVC2000 minimizes costs with zero to minimal NRE for standard configurations.

Specifications

Cooling
Base Plate
Environmental
Elements from MIL-STD-461G, DO-160G, MIL-STD-704F and MIL-STD- 810G
Extended Temperature Range
Yes
Form Factor
VPX 3U
I/O
DVI, Gigabit Ethernet, GPIO, Serial, USB, VGA
Maximum Memory
32 GB DDR4 SDRAM soldered with ECC
Maximum Storage
1 TeraByte
Operating System (OS) Support
Windows 7, Windows 10, RedHat 7.2
Operating Temp
-40˚C to +71˚C
Other
Up to 4 ECM tiles for a broad range of I/O configuration
Processor
Intel Xeon D, NVIDIA GM107 640-core GPU
Video Output
DVI, VGA
Weight lb (kg)
11.46 lbs (5.2 kg)

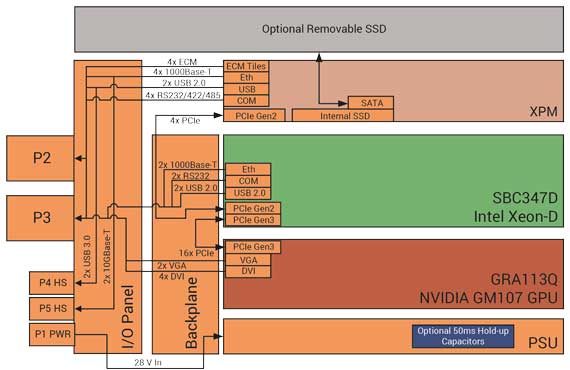

Block Diagram
