This product entered a Restricted Production Phase (RPP) on August 30, 2013

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

We recommend the following alternative solutions:

Overview

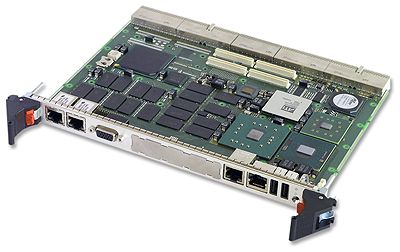

The CT11, Intel single board computer, provides a unique feature set, including up to 4 GB of DDR2 SDRAM (200 MHz) with enhanced ECC, four independent on-board PCI buses, system host and peripheral mode support for the CompactPCI backplane, two PMC interfaces (64-bit/133 MHz and 32-bit/33 MHz). Instead of the PMC1, a PCI Express based XMC interface is available on request. A high level of functional integration [two Gigabit Ethernet, one Fast Ethernet, two serial interfaces (RS-232 or RS-422/485), USB 2.0, integrated HDD or Flash drive] within a single slot gives users the freedom to use the PMC interfaces for their application specific I/O. For high performance computing, the VGA/DVI interface is supported through a 2D/3D ATI video controller capable of driving two displays in parallel. For telecom applications the CT11 is equipped with IPMI 1.5 functionality.





  • Intel Core 2 Duo @ 2.16 GHz, Intel Core Duo @ 2.0 GHz
  • 2x PMC expansion site, with one XMC optional
  • Up to 4 GB DDR2 SDRAM w/ ECC
  • 2x Gigabit Ethernet







Specifications

# Expansion Slots:
2
Bus Interface Chip
PLX PCI6466
Ethernet
Gigabit Ethernet
Form Factor
cPCI 6U
Maximum Memory
4 GB DDR2 SDRAM with ECC
Processor
Intel Core Duo @ 2.0 GHz
Ruggedization
Commercial (benign)
Serial I/O
2
System/ Peripheral
Both
Transition Modules
CTM17
