CP-630

Dual PCI-X PMC carrier board for 6U CompactPCI
CP-630

This product entered a Restricted Production Phase (RPP) on December 31, 2005

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview

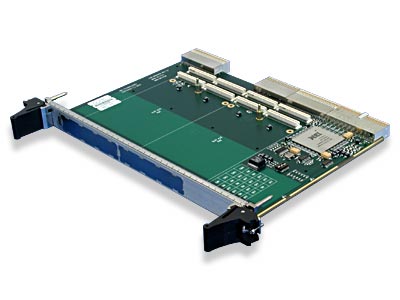

CP-630 is a PCI-X capable 6U CompactPCI carrier board with sites for two PMCs with front or rear panel I/O. Twenty-one pairs of I/O lines from each set of rear I/O connectors are routed as 100 Ohm differential pairs through J3 and J5. Other I/O lines are routed as 50 Ohm single ended lines.

  • Industry-standard IBM 64-bit, 133 MHz PCI-X bridge chip
  • Front or back panel I/O support for both PMC sites
  • Two PMC slots on a 6U Compact PCI card

Specifications

Capacity
2 PMC
Form Factor
cPCI 6U
Front I/O
Yes
Rear I/O
Yes
Slots
64-bit/133 MHz PCI-X
