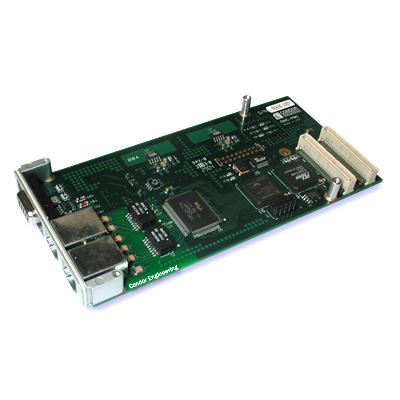

CNIC-A2P

Dual Port AFDX/ARINC 664 PMC Interface
CNIC-A2P

This product entered a Restricted Production Phase (RPP) on March 31, 2014

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview

The CNIC platform is a high performance, PMC module for the AFDX / ARINC 664 protocol. With two independent ports for traffic monitoring, traffic generation, external triggering and analysis, the CNIC provides high-resolution time-tagging of incoming packets simultaneously with highly accurate traffic generation. An IRIG-B receiver/generator is included for synchronization to an external IRIG-B time source and for synchronization between multiple CNIC boards. Our exclusive pipeline architecture avoids the local bottlenecks of CPU-based interface solutions, and significantly outperforms standard NIC cards. The interface can be easily configured as either one dual-redundant AFDX / ARINC 664 port, or two high performance, independent ports. Simultaneous, real time traffic generation on both ports is highly accurate. Input and output triggers are provided, errors are detected or can be injected, while extensive link and protocol-level statistics are available for analysis. Programs have complete access to all frame and header data, can easily wrap data and perform extensive BIT testing. Each incoming packet is tagged with a 20 nsec resolution, 64-bit time-tag.

Last Time Buy:  March 31, 2014

Last Time Ship:  September 31, 2014

Please contact your Abaco SystemsIP sales representative or Avionics Sales Director Steven.Holder@Abaco Systems.com for details.





  • Carrier Card options available: PCI (-X), 3U cPCI (-3), 6U cPCI (-F) and PCI Express (-U)
  • SDK includes high-level AFDX API, low-level (raw frame-based) API, and .NET integration libraries at no additional charge
  • Two independent 10/100 MHz full duplex ports







Specifications

AFDX Stack
AFDX / ARINC 664 protocol stack
Application
Lab, Simulation, Test
Channels
2
Form Factor
PMC
Options/ Notes
IRIG Support.BusTools/AFDX analyzer available.
Processor
FPGA
Ruggedization
Convection Cooled
