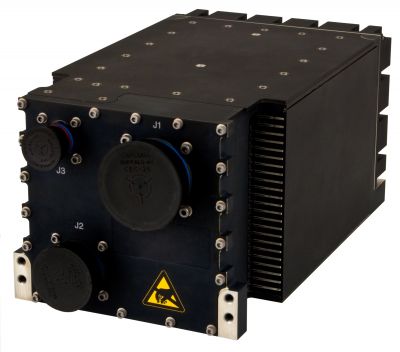

AVC-CPCI-3056 CTF Advanced Vehicle Computer

3U CompactPCI application-ready vehicle computer
AVC-CPCI-3056 CTF System

Overview

Abaco Systems AVC-CPCI-3056 CTF Application Ready Vehicle Computer Control System is a COTS packaged pre-validated computer system that provides a rugged and highly flexible computing platform suited for mission applications requiring rock-solid reliability such as UAVs, booster and ground vehicles, and manned aircraft.

Abaco Systems’ COTS-based AVC-CPCI-3056 CTF Application Ready computer system can be deployed in the field as soon as your application is ready, or use the AVC-CPCI-3056 CTF as a starting point for multiple application-specific configurations. The arduous task of integrating off the shelf boards has already been done for you -- shortening your time to project completion. You have one point of contact for all issues and a single part number -- not a collection of parts.

  • COTS AVC rugged forced air cooled chassis
    • 3x 3U CompactPCI slots
    • MIL-C-38999 connectors
    • Lightweight, less than 11 lbs.
  • PowerPC-based single board computer
  • VxWorks Real-time operating system
  • BIT/EBIT support
  • Standard conformal coating
  • I/O capabilities
    • Ethernet
    • Serial
    • Audio
  • Qualified on:
    • High Altitude UAVs
    • Rotary Wing manned and unmanned vehicles
    • Ground vehicles
    • Launch vehicles

Specifications

Form Factor
cPCI 3U
Operating System (OS) Support
VxWorks
Processor
8641D @ 1.33 GHz
Slots
3
Type
CTF

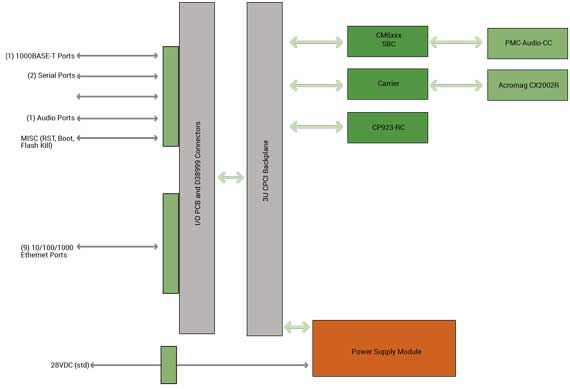

Block Diagram
